1.25” Heim Joints Rod End Kit, Left and Right Hand Thread 1 1/4” Chromoly Joints Panhard Kit with Jam Nuts, Spacer and Tube Adapters
4.5 (137 items)
Limited Time SaleUS$41.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216196451 | Release Date | 2026/04/19 | List Price | US$28.00 | Model Number | 216196451 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

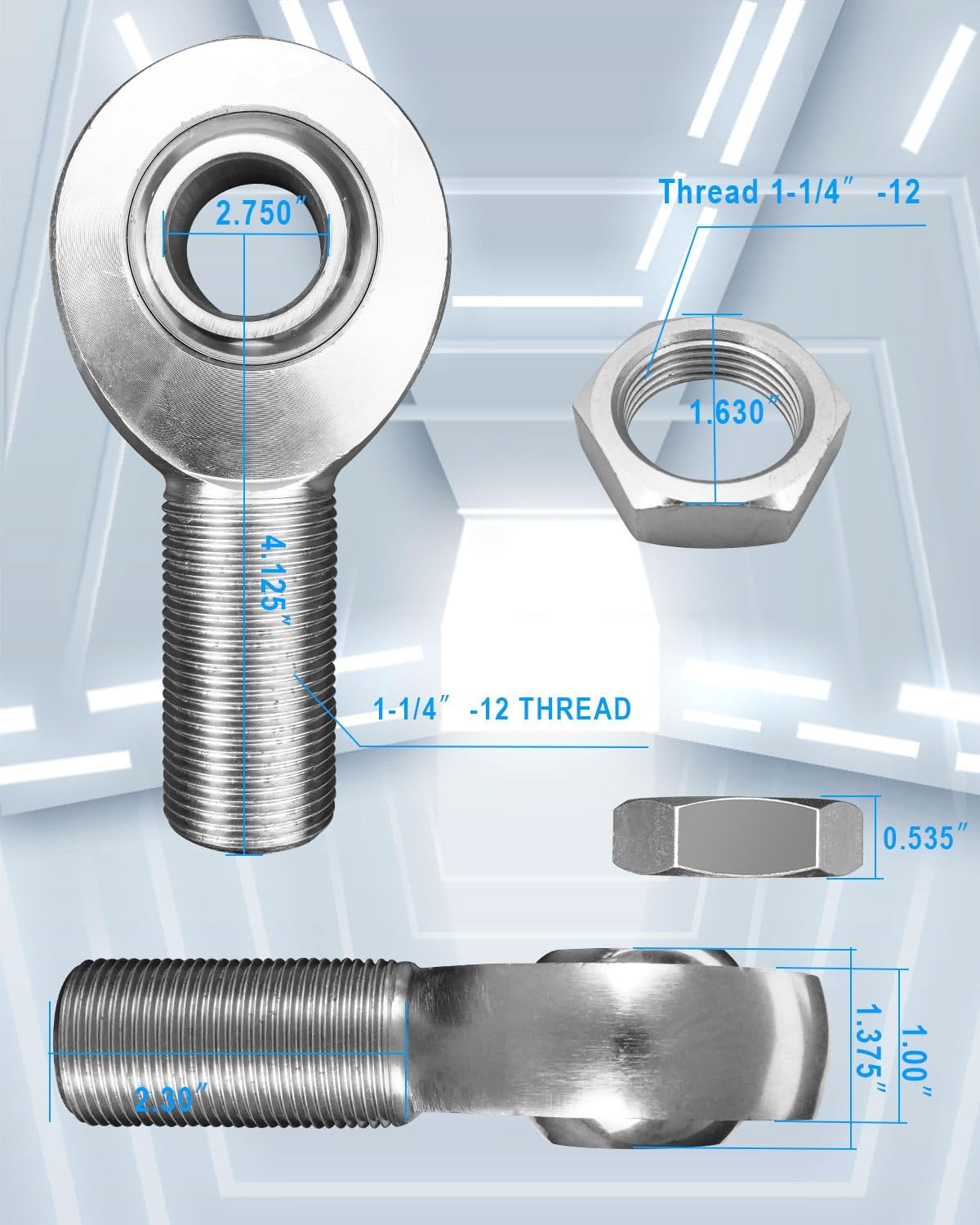

1.25” Heim Joint Rod End Kit Features Heim joint rod end is heat treated and hard chrome plated for durability 100% inspected before leaving the factory to ensure heavy duty performance and longer use Load capacity up to 76,000 lbs Simple Installation, the joints can be MIG and TIG welded Ideal for steering and suspension, steering joints, linkage joints on drawbars and hot rods Specification Rod End： Thread Size: 1-1/4"-12 Thread Length: 2.125" Ball Bore: 1" Ball Width: 1.375" Centerline Length: 4.125" Jam Nut： Thread:1-1/4"-12 Height: 0.575" Width: 1.875" 1-1/4 Bung: Thread Size: 1-1/4"-12 Fits Tube Size: 1 3/4" OD. x .120 Wall x 1.5" ID After-Sale Service If you have any questions about our products, please contact us directly, we will help you solve your problems as soon as possible
- Heavy Duty Material: The heim joints rod end kit is heat treated and hard chrome plated to ensure durability. 100% inspection is carried out before leaving the factory to ensure heavy performance and longer service life. The bearing capacity is up to 76,000 lbs
- Specification: 1.25” Heim Joint Rod End with 1.2tpi, suitable for 1 3/4" OD.x .120" Wall x 1.5"ID Tube Size
- Simple Installation: Our products are equipped with additional installation hardware, and the joints can be welded by MIG and TIG, which is simple to install and saves money
- Wide Range of Applications: Ideal for steering and suspension, steering joints, linkage joints on drawbars and hot rods
- Package Includes: 1 set of 1.25” Heim Joints Rod End Kit with jam nut, tube adapters and Spacer
| Brand | TADYAO |
|---|---|
| Model | 1.25” Heim Joints Rod End |
| Item Weight | 6.75 pounds |
| Manufacturer | TADYAO |
| Item model number | 1.25” Heim Joints Rod End |
| Package Dimensions | 6.97 x 6.61 x 3.07 inches |
| Manufacturer Part Number | 1.25” Heim Joints Rod End |
